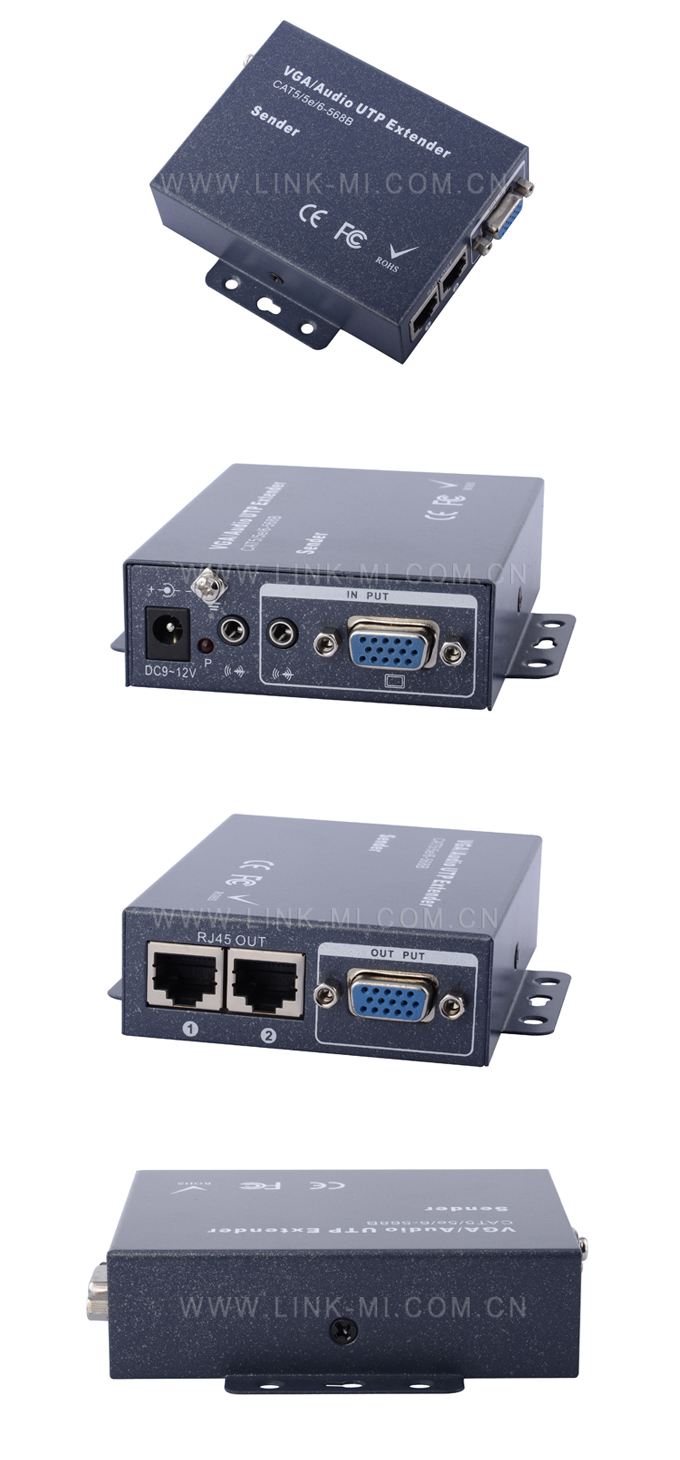

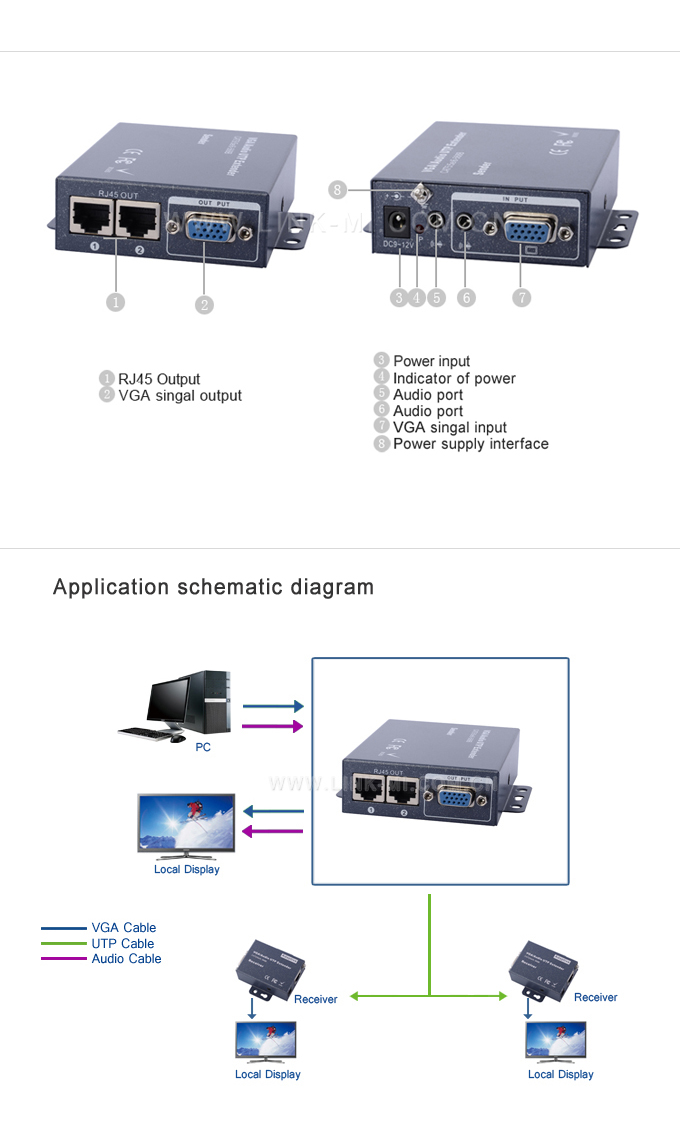

| LINK-MI LM-102T 2 Channel Active VGA Video & Audio Transmitter |
| |
Introduction:
1.350MHz signal transmission bandwidth.2.High video resolution up to 1920×1080 pixels.3.Powered by either power adaptor.4.Support VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors. 5.Built-in surge&transient protection with grounding rod on front panel.6.Super interference rejection. |
|
|
| |
|
|
|
|
Specification
|
|
|
|
Power properties |
Adaptive Voltage Arrange |
12V DC(power adaptor) |
|
Power Consumption |
<3.5w |
|
Connectors |
DC Jack |
|
|
|
Video
properties |
Video Input Connector |
1* 15pin HD15 male; Impedance: 75Ω |
|
Local Video Output connector |
1* 15pin HD15 female; Impedance: 75Ω |
|
UTP Cable Connector |
2* RJ-45; Impedance: 50Ω |
|
Signal Transmission Band |
>350MHz(-3db) |
|
Linear Distortion |
<3% |
|
Synchronous signal |
0-5V,TTL PWL |
|
Synchronous signal band |
1K-200KHz |
|
DDC2 |
Virtual DDC |
|
Audio properties |
Connectors |
2* 3.5mm Audio Jacks |
|
Input Impedance |
10kΩ |
|
Output Impedance |
600Ω |
|
Transmission Band |
10-20KHz |
|
Physical
Properties |
Dimensions (LWH) |
210*85*32mm |
|
Housing Material |
Metal |
|
Color |
blue |
|
N.W. |
540g |
|
Environmental |
Operating Temperature |
0~70 |
|
Relative Humidity(non-condensing) |
10~85% |
|
Storage Temperature |
-10~80 |
|
Accessories |
Power Adaptor |
Power supply input: 100-240V AC
Power supply output: 12V DC/ 1Amp
Wire Length:2m |
|
USB Cable(A-B) |
Length: 1.5m |
|
VGA Cable(F-M) |
Length:1.2m |
|
Audio Cable(M-M) |
Length:1.5m |
|
Casing |
Gross Weight |
300g |
|
Casing Volume(LWH) |
95*97*28mm |
Packing Contents
1. Main Unit. 1pcs VGA Video & Audio Transmitter
2. 1pcs Power Adapter
3. 1pcs User Manual
|
 |
|
|
|
|
